Tilta ES-T18 Camera Cage for SONY PXW-FX9 DSLR Camera full cage PXW FX9 Rig with base plate power ES-T18 in stock

From R3104.57
  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    Overview

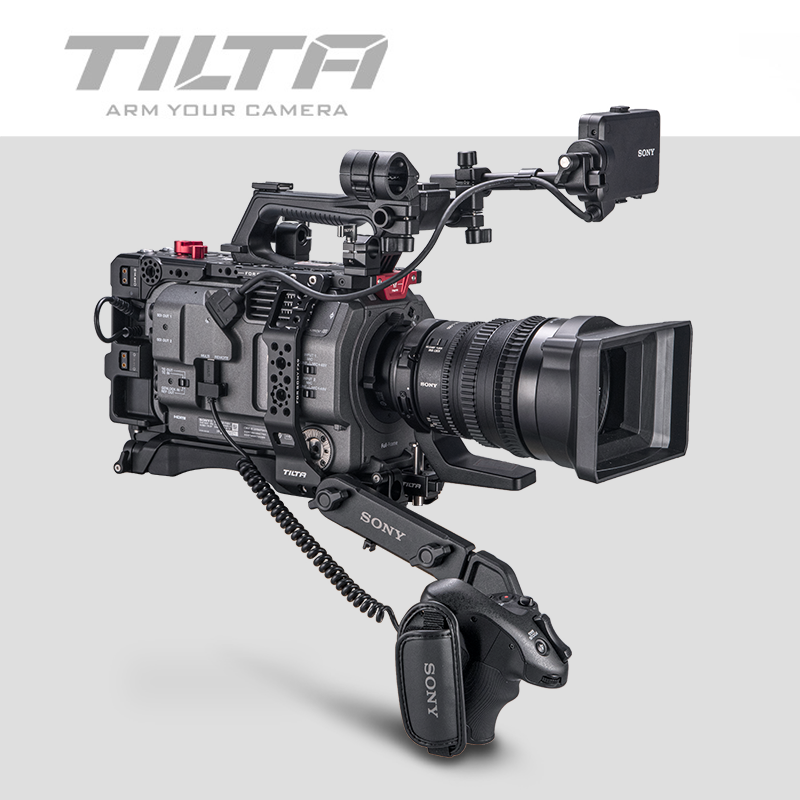

    Arm your camera with this Tilta camera cage specifically designed for the Sony PXW-FX9.

    The cage’s top plate fits snugly around the Sony PXW-FX9 top handle and includes 15mm LWS rod adapters on the front end to allow you to easily mount the camera’s viewfinder.

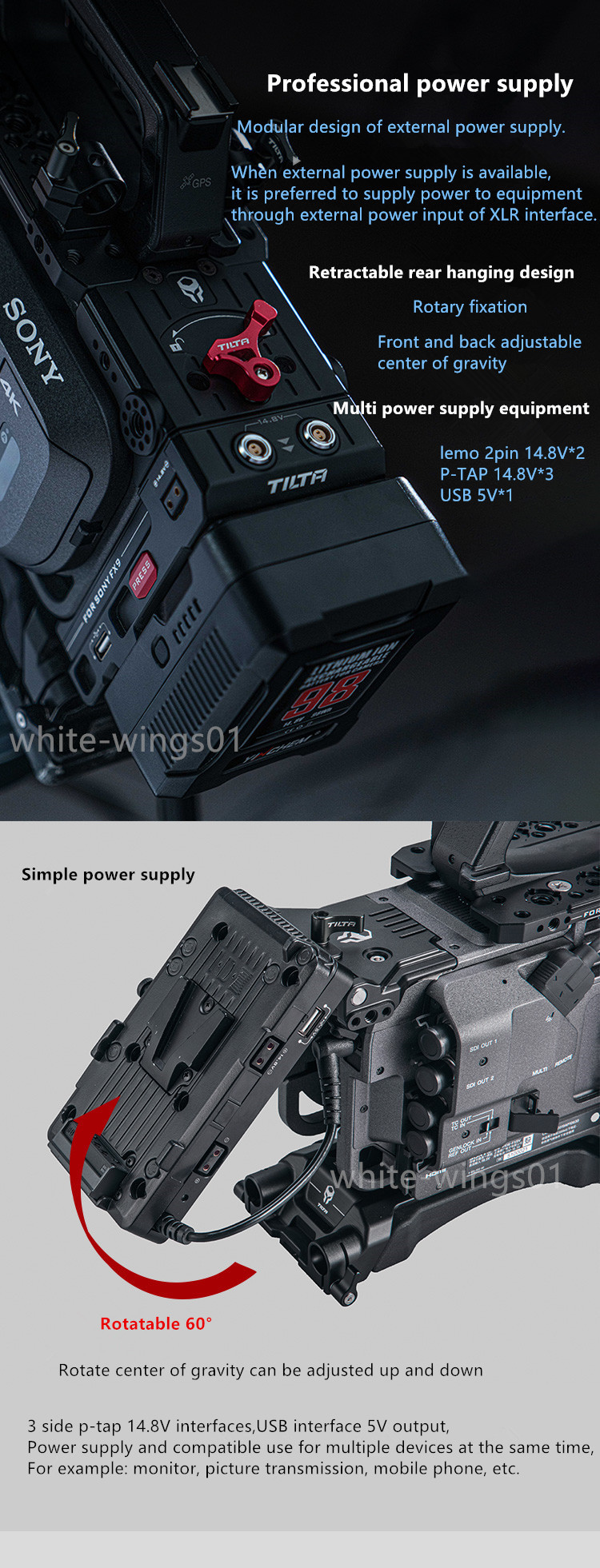

    The Tilta Battery Plate for Sony PXW-FX9 Cage (available in either gold mount or V-mount) attaches directly to the back of the top plate and hugs the back side of the camera. The battery plate provides several different power outputs to allow you to power accessories.

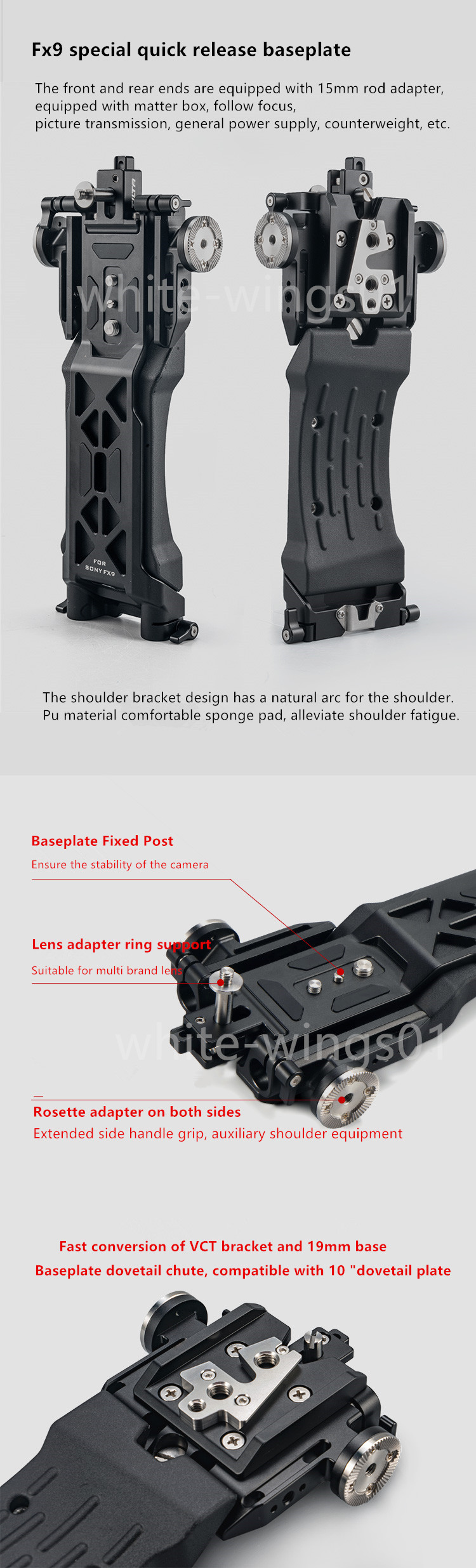

    On the bottom of the cage is a Sony VCT-U14 compatible baseplate that allows you to attach various accessories via 15mm LWS rods on either the front or back side of the plate. The plate also has an ergonomic shoulder pad on the bottom so that you can quickly and easily detach from the VCT-U14 plate and be shoulder mount-ready in no time. The plate also has Arri Standard Rosette connections on the left and right sides to allow you to attach handles (or Sony’s own PXW-FX9 operating handle) for handheld operation. A built-in lens adapter support bracket is also included on the front side of the plate.

    A side plate offers even more protection and — along with the top plate — provides several 1/4″-20 and 3/8″-16 mounting points to allow you to mount a variety of accessories.

    Package including:

    ES-T18-V

    1,PXW-FX9 Quick-mount Base
    2,15*200 MM slideway black*2
    3,Adjustable lens adapter ring support(work for many cameras)
    4,Multifunctional expansion side wall
    5,Multifunctional expansion apical plate(15mm Expandable rail, can be installed on the focus and so on)
    6,EVF Rail adapter + 15*45 Rail adapter
    7,Proffessional V-Mount Battery Plate 14.8V lemo 2 lamp pith Output,DC 6.5*4.4 External power supply,19.5V Power Output(18-20.5V)
    8,CANNON power supply module(Priority external power supply)
    9,10 inch dovetail stroke board(black)
    10,Toolkit*1

    ES-T18-B

    1,PXW-FX9 Quick-mount Base
    2,15*200 MM slideway black*2
    3,Adjustable lens adapter ring support(work for many cameras)
    4,Multifunctional expansion side wall
    5,Multifunctional expansion apical plate(15mm Expandable rail, can be installed on the focus and so on)
    6,EVF Rail adapter + 15*45 Rail adapter
    7,Toolkit*1

    ES-T18-C-V

    1,PXW-FX9 Quick-mount Base
    2,15*200 MM slideway black*2
    3,Adjustable lens adapter ring support(work for many cameras)
    4,Multifunctional expansion side wall
    5,Multifunctional expansion apical plate(15mm Expandable rail, can be installed on the focus and so on)
    6,EVF Rail adapter + 15*45 Rail adapter
    7,Base Version V-Mount Battery Plate
    8,10 inch dovetail stroke board(black)
    9,Toolkit*1

    ES-T18-A-V

    1,PXW-FX9 Quick-mount Base
    2,15*200 MM slideway black*2
    3,Adjustable lens adapter ring support(work for many cameras)
    4,Multifunctional expansion side wall
    5,Multifunctional expansion apical plate(15mm Expandable rail, can be installed on the focus and so on)
    6,EVF Rail adapter 15*45 Rail adapter
    7,Proffessional V-Mount Battery Plate 14.8V lemo 2 lamp pith Output,DC 6.5*4.4 External power supply,19.5V Power Output(18-20.5V)
    8,CANNON power supply module(Priority external power supply)
    9,4*5.65 Matte Box MB-T12
    10,unilateral Limit follow focus
    11,10 inch dovetail stroke board(black)
    12,Toolkit*1
