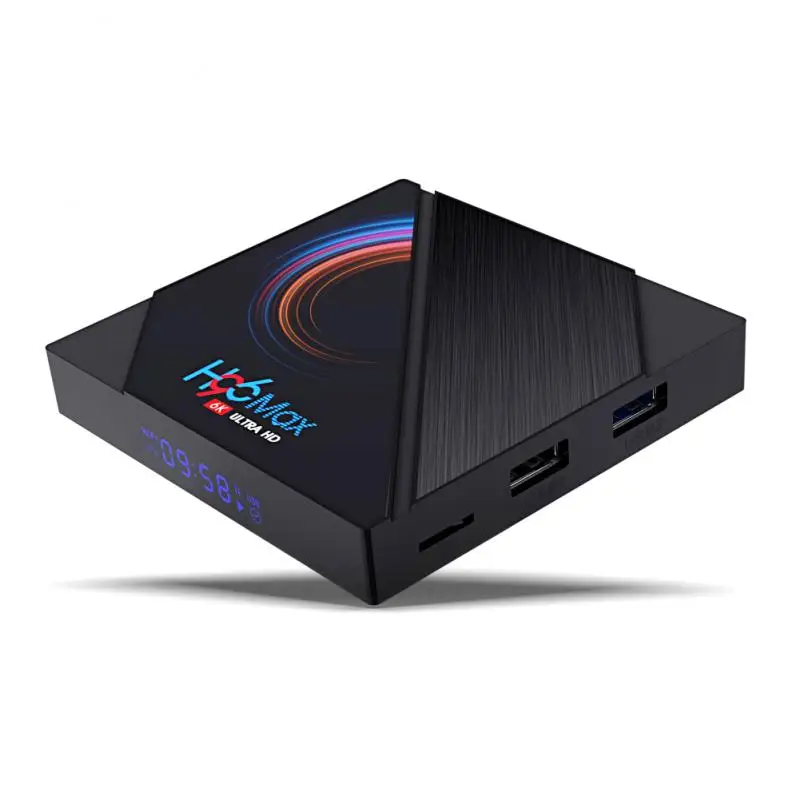

H96 Max Quad Core H616 6K HD Smart TV Box Android 10.0 Double WIFI Wireless TV Set-top Box With Digital Display

From R468.23
  • Ships From:

  • Plug Type:

  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    CPU:Allwinner H616 Quad Core ARM Cortex A53

    GPU:G31MP2  Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0

    Memory:2GB/4GB DDR3L

    Flash:16G/32GB/64GB eMMC

    WiFi:2.4GHz+5GHz

    BT:BT4.0

    Image:JPG,JPEG,BMP,GIF,PNG,TIF;

    I/O:

    1*HDMI hole:HDMI 2.0a up to 4K@60fps;

    1*AV OUT hole:480i/576i standard definition output;CVBS output, supporting PAL/NTSC;

    2*USB hole:2* USB 2.0 ;

    1*IR Reciver:Remote Reciver Connect;

    1*RJ45 hole:Ethernet Interface;Support 10/100M;

    TF card hole:Support 4GB/8GB/16GB/32GB/64GB;

    OS:Android 10.0

    Power:DC 5V/2A

    Power ON :blue

    Support:Support USB,pre-install APK

    Certification:CE,Rohs,Fcc and Health test reports ,safe shipment reports,etc…

    Video:

    Video Engine (AVE) with dedicated hardware decoders and encoders

    Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps

    Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding

    Video Decoding:

    VP9 Profile 2 up to 4Kx2K@60fps;

    H.265 Main10@L5.1 up to 4Kx2K@60fps,or 6K@30fps;

    AVS2-P2 Profile up to 4Kx2K@60fps;

    H.264 BP/MP/HP@L4.2 up to 4Kx2K@30fps;

    H.263 BP up to 1080P@60fps;

    MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496);

    MPEG-2 MP/HL up to 1080P@60fps (ISO-13818);

    MPEG-1 MP/HL up to 1080P@60fps (ISO-11172);

    Xvid up to 1080P@60fps;

    Sorenson Spark up to 1080P@60fps;

    VP8 up to 1080P@60fps;

    AVS/AVS+ JiZhun Profile up to 1080P@60fps;

    WMV9/VC1 SP/MP/AP up to 1080P@60fps;

    JPEG HFIF file format up to 45MPPS;

    Multiple language and multiple format sub-title video support;

    MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918);

    Supports JPEG thumbnail, scaling, rotation and transition effects;

    Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats”.

    Audio:

    Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing;

    Audio Codec:

    Two audiio digital-to-analog(DAC) channels;

    upport 16-bit and 20-bit sample rate;

    8kHz to 192kHz DAC sample rate;

    95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms;

    One128*24-bits FIFO for DAC data transmit;

    built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz ;x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch;

    Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs;

    Built-in stereo audio DAC;

    Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM”;

    Product dimension:90mm*90mm*17mm

    Unit packing: (LxWxH):173*103*65mm

    Unit packing (G.W.):300g

    Language:English French,German,Spanish,Italian etc multilateral languages

    Specification Plug:US/UK/EU/AU (Optional)

    Supports 6K resolution and H.265 decoding, high-definition imaging effect.

    2G/4GB RAM and 16G/32G/64G ROM, ultra-large capacity allows you to enjoy more pleasure.

    Allwinner H616 processor ensures more smooth and flexible operation.

    2.4/5GHz Wi-Fi brings you high-speed wireless transfer experience.

    You can enjoy high-definition image at home.

    And it is reliable and safe to use in your home.

    1* Tv box

    1* Remote control

    1* HDMI cable

    1*Ppower cable

    1* Instruction manual

    Notes:

    Due to the difference between different monitors, the pictures may not reflect the actual color of the item.

    Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement.

    Please leaving a message before you give the bad feedback, if the products have some problems.

    Thanks for your understandings
